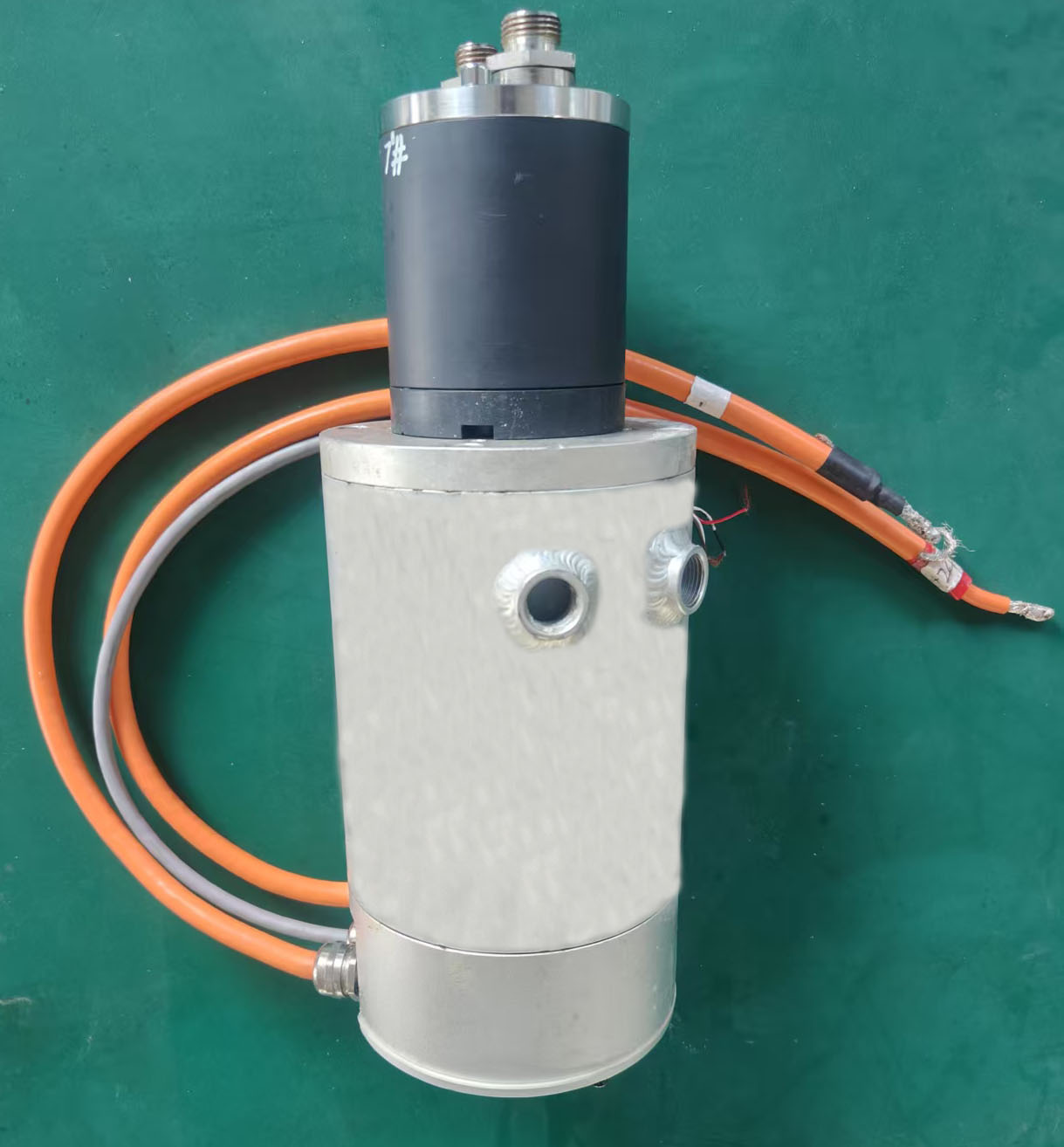

高压水泵主要技术参数
High-pressure water pump main technical parameters
高压水泵型号 High-pressure water pump model | CF-GP001 | 材料 Raw materials | 钛合金/Titanium alloy 工程塑料/Engineering plastics 双相不锈钢/duplex stainless steel |
匹配电机 Matching motor | 直流无刷电机 Direct current brushless motor | 型号 Motor model | CF-WS-24V-1500RPM |
功率 Rated power | 1.3KW | 电压 Voltage | DC24V | 转速 Rotation speed | 1500r/min |
冷却方式 Cooling method | 水冷 water-cooled | 工作温度 operating temperature | -25℃~60℃ | 防水等级 Waterproof rating | IP66 |
匹配泵头型号 Matching pump head model | CF-ZXB600 |
适用转速 Applicable speed | 1500~3000r/min | 额定流量 Rated flow | 560L/h~1040L/h |
压力 Rated pressure | ≤8.0 MPa | 进口尺寸 Imported size | G1/2” |
适用功率 Applicable power | 1.1~2.2 KW | 出口尺寸 Exit dimensions | G3/8” |
