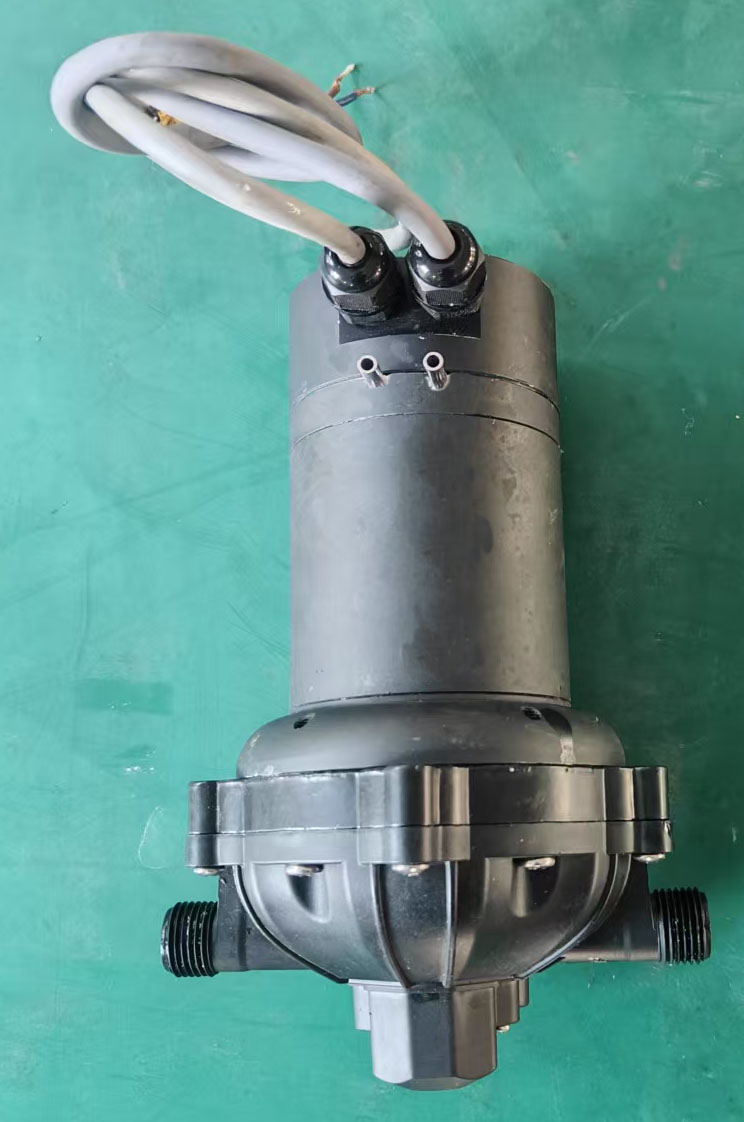

低压水泵主要技术参数
Low-pressure water pump main technical parameters
低压水泵型号 Low-pressure water pump model | CF-GP002 | 材料 Raw materials | 工程塑料 Engineering plastics |
匹配电机 Matching motor | 直流无刷电机 Direct current brushless motor | 型号 Motor model | CF-WS-24V-2000RPM |
功率 Rated power | 0.18 KW | 电压 Voltage | DC24V | 转速 Rotation speed | 2000r/min |
冷却方式 Cooling method | 水冷 water-cooled | 工作温度 operating temperature | -25℃~60℃ | 防水等级 Waterproof rating | IP66 |
匹配泵头型号 Matching pump head model | CF-BSP48180 |
适用转速 Applicable speed | 2000 r/min | 额定流量 Rated flow | 18 L/min |
压力 Rated pressure | ≤0.3 MPa | 进出口尺寸 Imported and Exit size | G1/2” |
适用功率 Applicable power | 0.18 KW | 吸程 Suction lift | ≈2.8 m |
